S150 – AC Leakage Current Detector
Measures AC current, frequency and current waveform
Current measurement up to 500 A at 50/60 Hz
Current resolution down to 0.1 mA

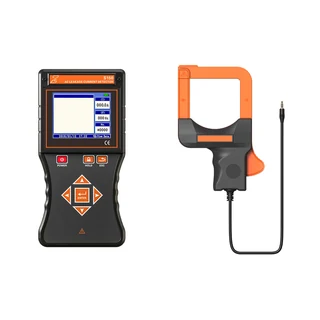

Separate clamp and handheld display unit
Data hold and storage for up to 200 sets
Adjustable current alarm threshold from 10 mA to 30 A
Rechargeable battery with USB charging
Product Description
The S150 AC leakage current detector combines a current clamp with a handheld display for AC current, frequency and waveform checks. It measures current up to 500 A at 50/60 Hz, with current resolution down to 0.1 mA.
Data hold, memory for 200 sets and an adjustable current alarm support repeated checks and monitoring. A rechargeable battery and USB charging provide a practical setup for site inspections.
Technical FAQ
Which electrical quantities does the S150 measure?
The datasheet lists AC current, frequency and current waveform analysis. The 500 A current range is specified for 50/60 Hz.
Can it warn when a current threshold is exceeded?
The datasheet lists an adjustable alarm threshold from 10 mA to 30 A.
How many readings can it store?
The specified storage capacity is 200 sets, and HOLD can freeze the displayed reading.
How is the S150 powered and charged?
The S150 uses a 7.4 V, 3000 mAh rechargeable lithium battery and charges through USB. The specified operating time is up to eight hours when fully charged.
