S690P - Rogowski Power Meter (Flexible Clamp Meter)

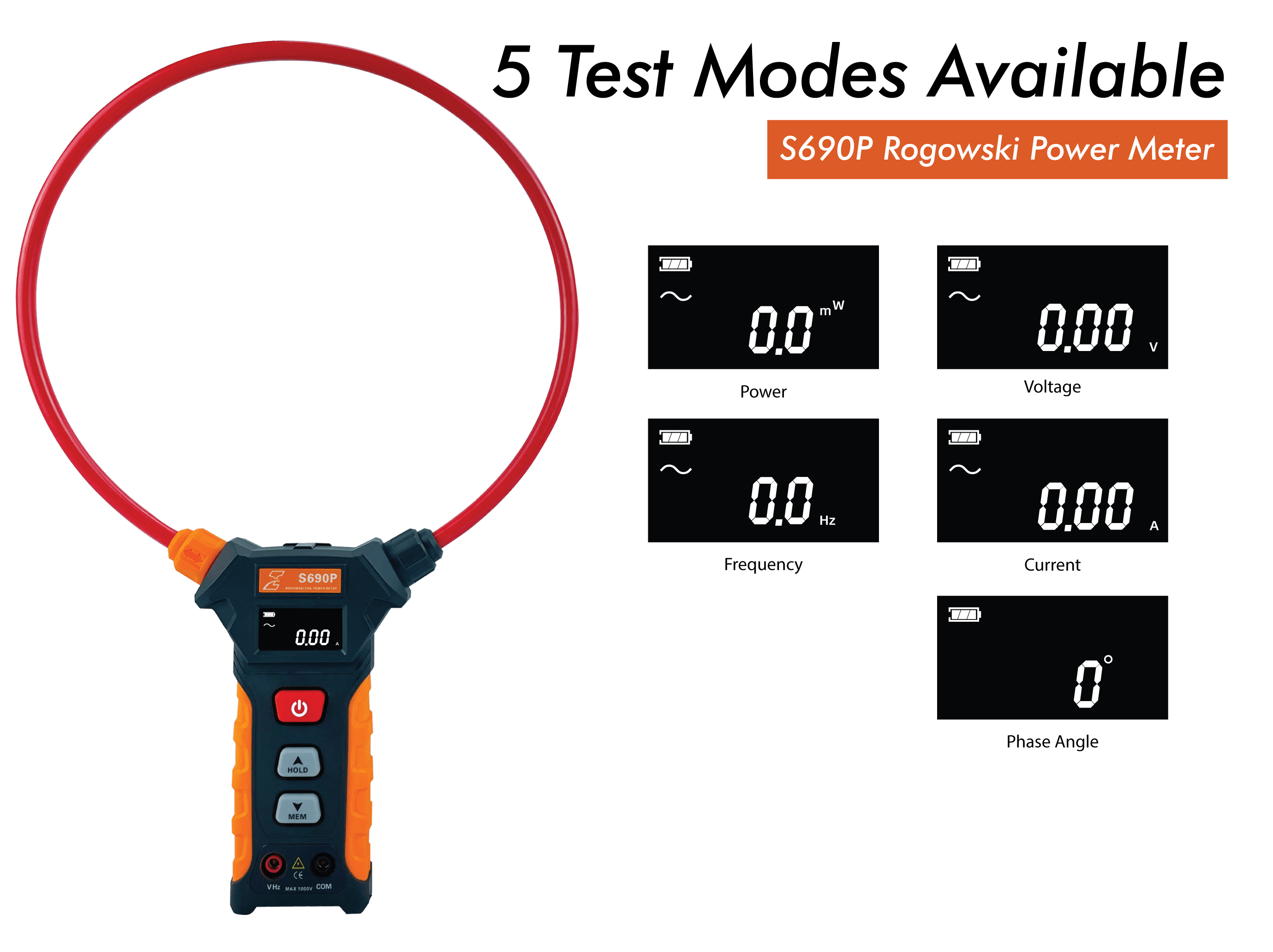

  • Measures AC current, AC voltage, power, frequency and phase angle.

  • AC current measurement up to 9999 A.

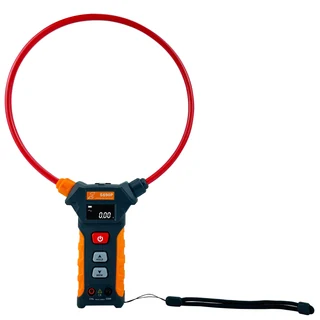

  • Flexible 650 mm coil with a nominal 200 mm inner diameter.

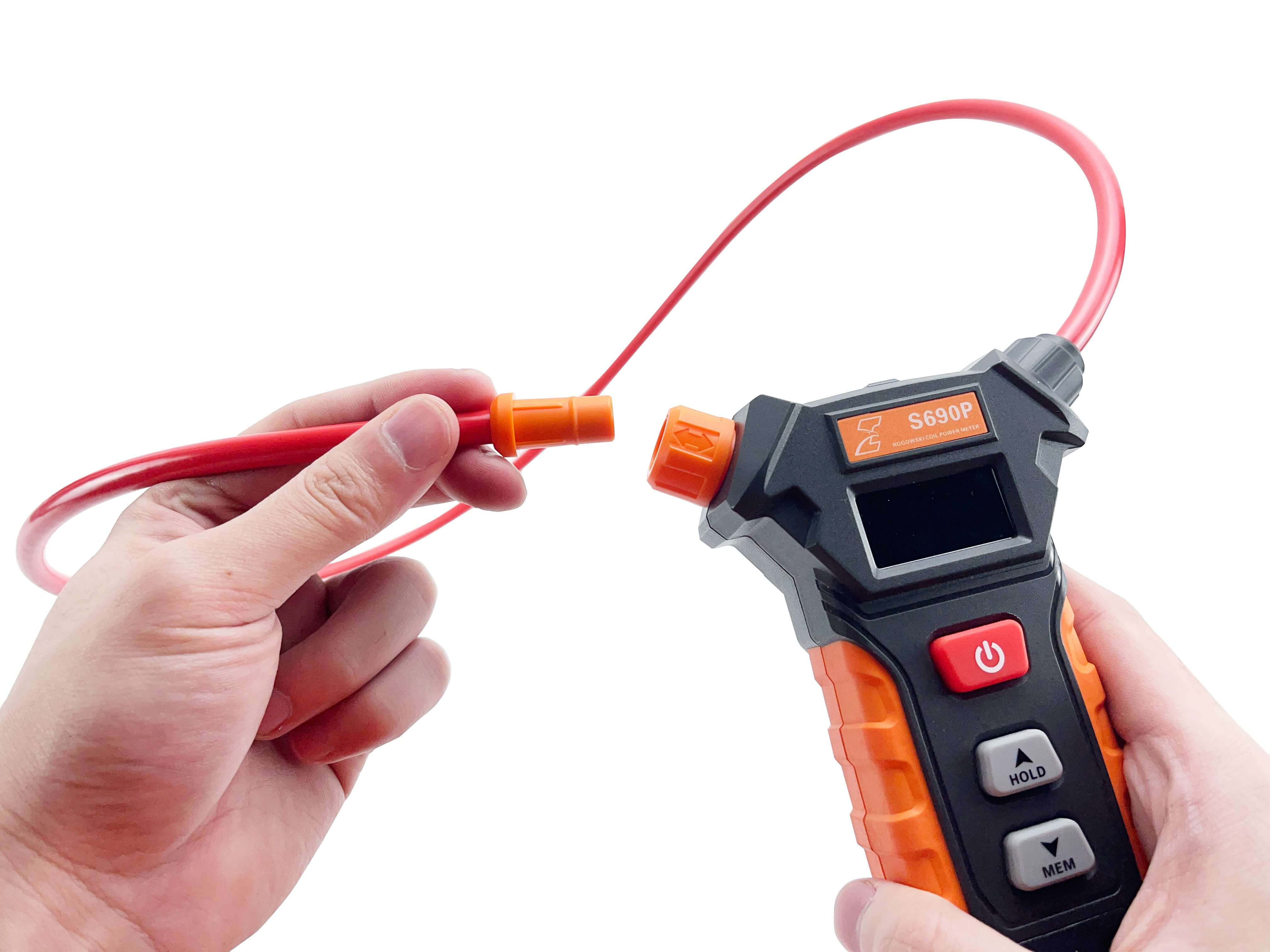

  • Pull-open coil connector for access around conductors.

  • Data hold, peak hold and storage for 99 sets.

  • USB transfer to PC software with TXT or Excel export.

  • Backlit LCD and automatic ranging.

Request a Quotation Download Datasheet Download Manual

Product Description

The S690P Rogowski coil power meter measures AC current together with voltage, power, frequency and phase angle. Its flexible coil opens at the connector to fit around thick conductors and densely arranged cables, with AC current measurement up to 9999 A.

Data hold, peak hold and memory for 99 sets support inspection work. Measurements can be transferred by USB to the PC software and exported in TXT or Excel format for review.

Technical FAQ

Does the S690P measure DC current?
The S690P is specified for AC current measurement.
What conductor opening is specified?
The coil length is 650 mm, with a nominal 200 mm inner diameter. Position the conductor near the centre of the closed coil.
How are readings exported?
Connect the meter to a computer using USB and run the PC software. The manual states that data can be exported in TXT or Excel format.
Which inputs are used for current, voltage and power checks?
The S690P uses one flexible current coil and separate V/COM voltage terminals. Use the corresponding connection arrangement in the instruction manual for each measurement.
