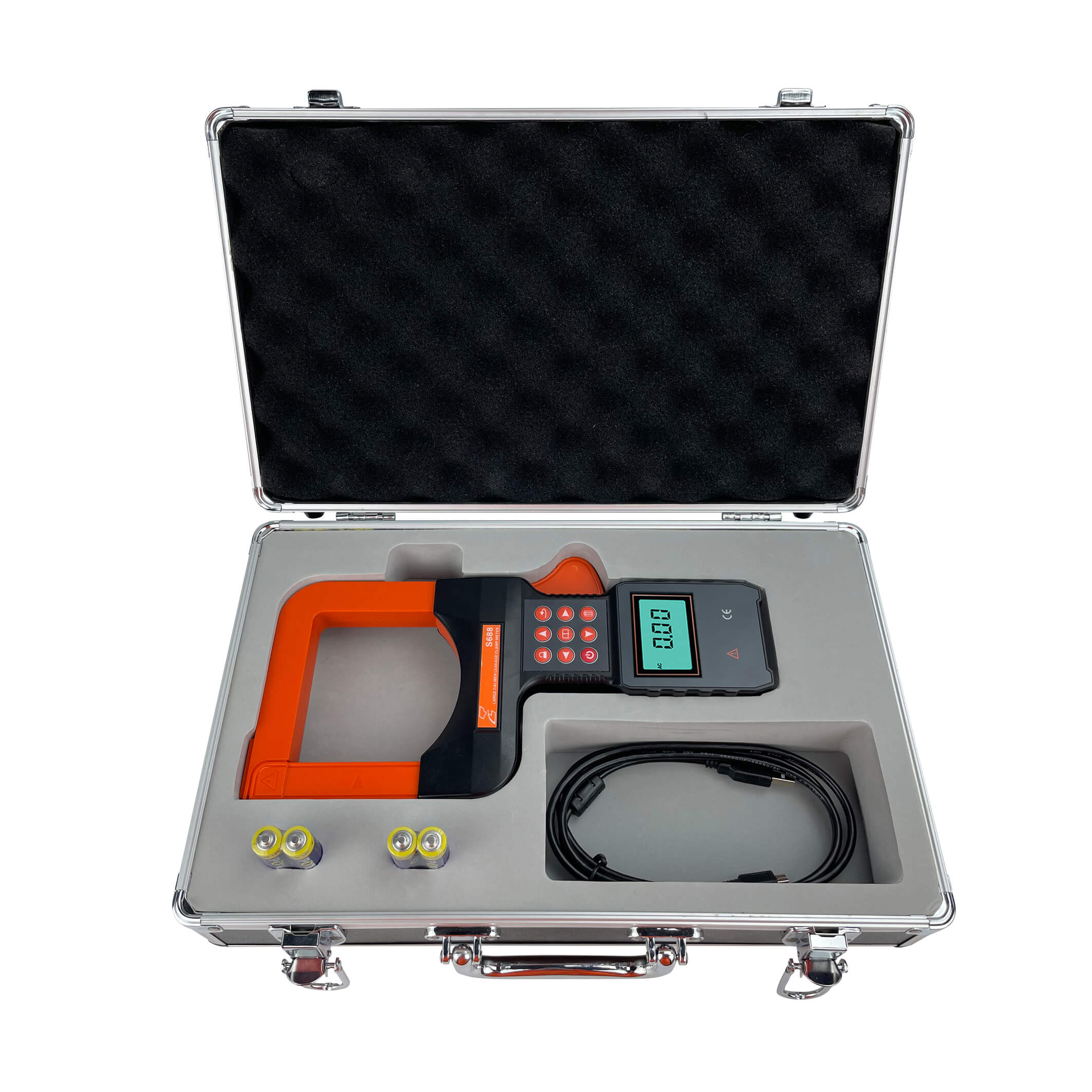

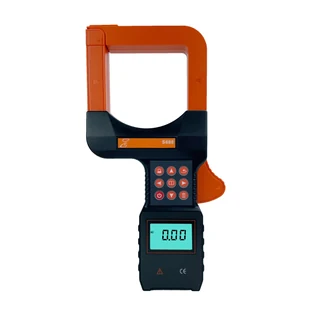

S688 - High Precision Square Jaw Clamp Meter

Measures AC leakage current and load current up to 1000 A.
Current resolution down to 0.01 mA.
Large 88 mm × 88 mm square jaw.

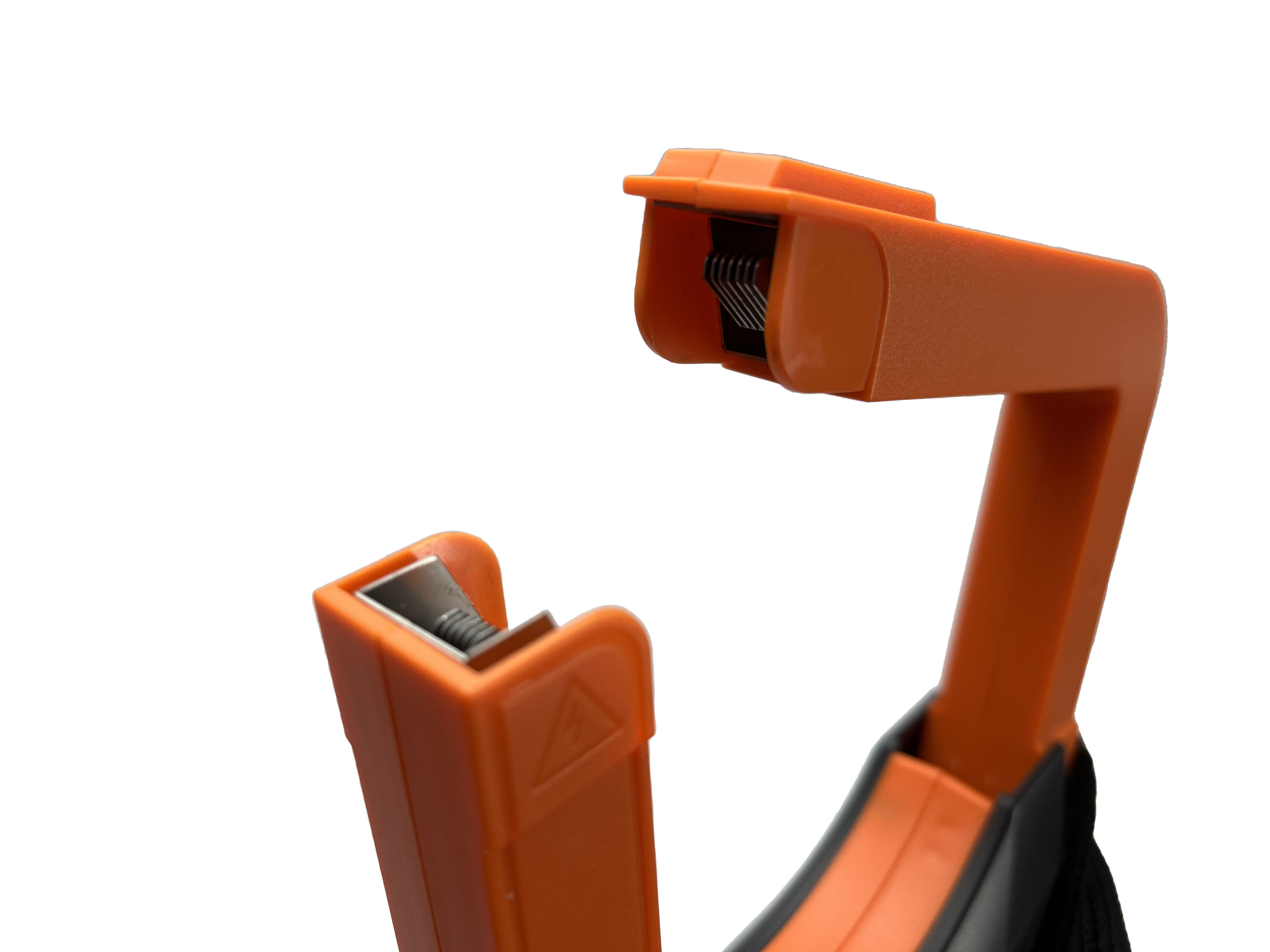

Corner-opening jaw for access in crowded conductor arrangements.
Permalloy magnetic core.
Data hold, 99-set storage and on-device reading review.
Automatic ranging with 50/60 Hz detection.

Request a Quotation Download Datasheet

Product Description

The S688 AC leakage current clamp meter measures AC leakage and load currents up to 1000 A, with current resolution down to 0.01 mA. Its large 88 mm × 88 mm jaw provides access around large conductors and the flat grounding conductors specified in the datasheet.

The corner-opening jaw helps position the clamp in crowded installations. A Permalloy core, automatic ranging, data hold and memory for 99 sets support repeated current checks and on-device result review.

Technical FAQ

Is the S688 an AC or DC current meter?

The specification lists AC leakage-current and AC current measurement, with automatic 50/60 Hz detection. DC current measurement is not listed.

Which conductor sizes are listed?

The jaw is 88 mm × 88 mm. The datasheet lists an 88 mm round cable or a 96 mm × 4 mm flat steel grounding conductor; fit must be checked for the actual conductor arrangement.

Can readings be saved and reviewed?

Yes. The datasheet lists memory for 99 sets, HOLD and an MR mode for browsing saved readings.

Does 0.01 mA resolution mean 0.01 mA accuracy?

No. The resolution is the smallest specified displayed current step. The datasheet gives separate current-range-dependent accuracy specifications.
