S-008A – AC Clamp

  • Compact AC current-transformer probe for compatible measuring instruments.

  • 7.5 mm × 13 mm jaw for small conductors.

  • AC current range up to 30 A.

  • Nominal 2000:1 current ratio.

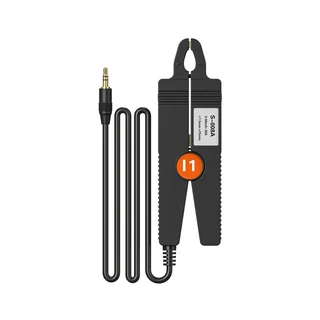

  • 3.5 mm output connector with a 2 m lead.

  • Clamps around the conductor without disconnecting it.

Request a Quotation Download Datasheet

Product Description

The S-008A is a compact AC current clamp probe for compatible electrical measuring instruments. Its 7.5 mm × 13 mm jaw fits small conductors, and the clamp can be installed without disconnecting the monitored conductor.

The source lists an AC current range up to 30 A and a nominal 2000:1 ratio. A 2 m lead with a 3.5 mm connector carries the current-proportional output to the host instrument for current, phase or power-related measurements supported by that host.

Technical FAQ

Is the S-008A a standalone power or energy meter?
It is a current-transformer probe. Power, energy, phase and harmonic analysis depend on a compatible host instrument using the probe’s current signal.
What jaw size and current range are listed?
The datasheet lists a 7.5 mm × 13 mm jaw and AC current up to 30 A.
What output connection is supplied?
The public datasheet lists a 3.5 mm connector and a 2 m output lead, with a nominal 2000:1 current ratio. The connected host must accept the probe’s output configuration.
How should the conductor be positioned?
The measured conductor should be centred in the core, as stated in the datasheet.
