S301H - High/Low Voltage Ammeter
AC current and leakage-current measurement up to 1200 A
Separate wireless receiver for viewing measurements

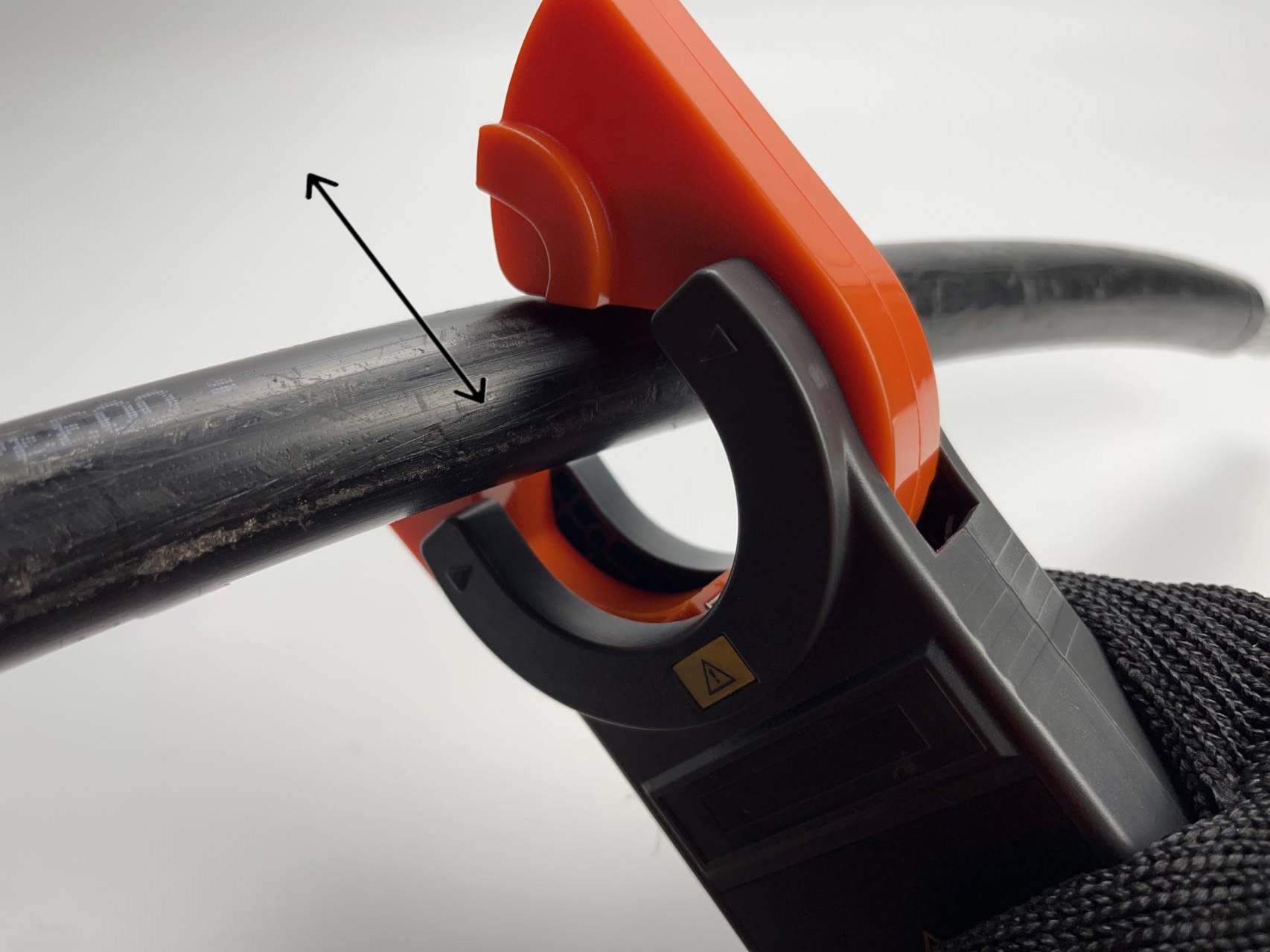

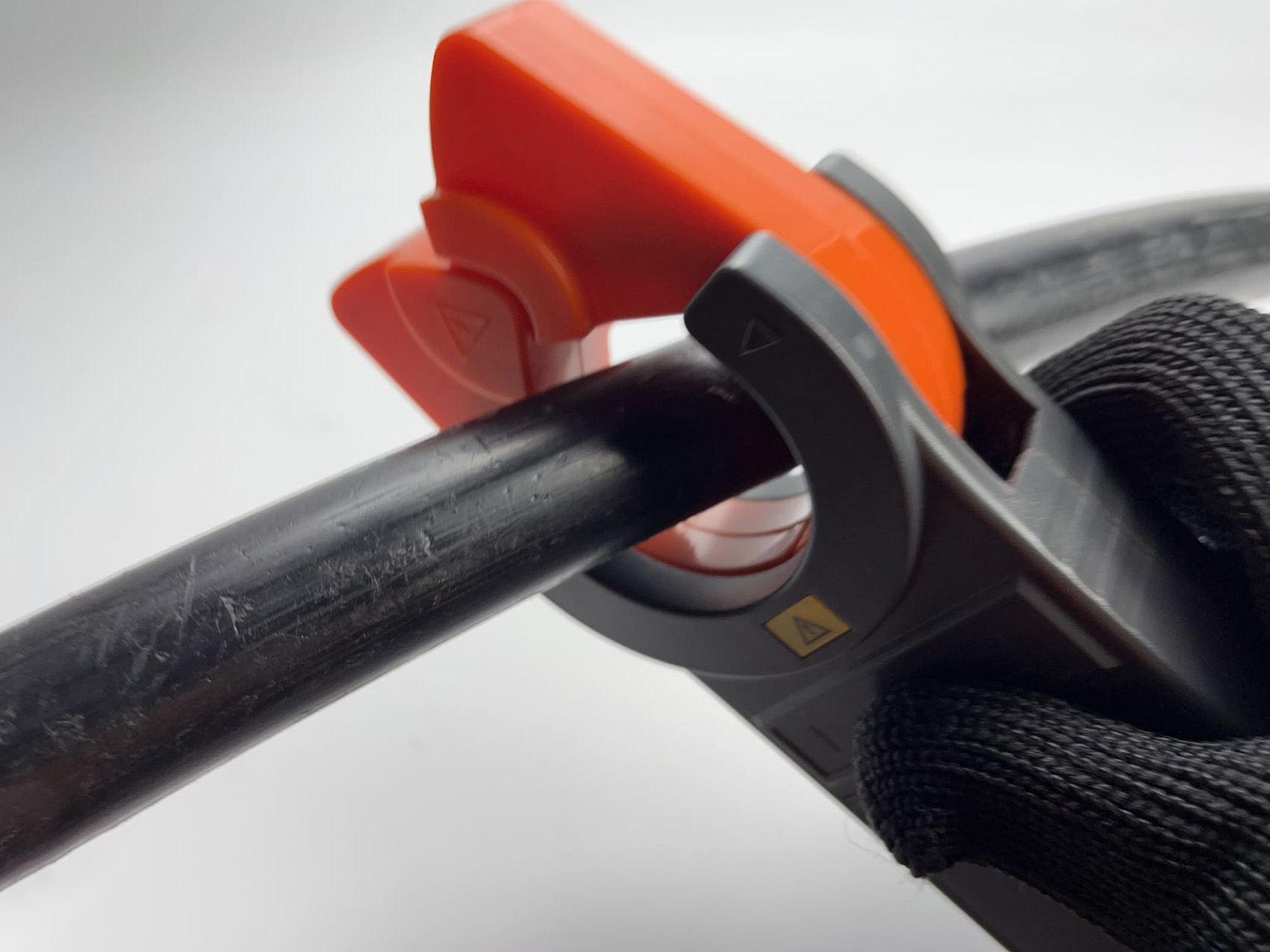

Jaw opening for conductors up to 50 mm
Current resolution down to 0.01 mA
Data hold and storage for up to 99 sets
Rechargeable receiver and battery-powered detector
Product Description
The S301H high/low voltage ammeter uses a clamp detector and separate wireless receiver for AC current and leakage-current checks. It measures current up to 1200 A, with a jaw opening up to 50 mm and current resolution down to 0.01 mA.
The receiver allows the reading to be viewed separately from the detector. Data hold and memory for 99 sets support field checks, and the listed package includes an insulating rod and carrying bag.
Technical FAQ
Is a separate wireless receiver included?

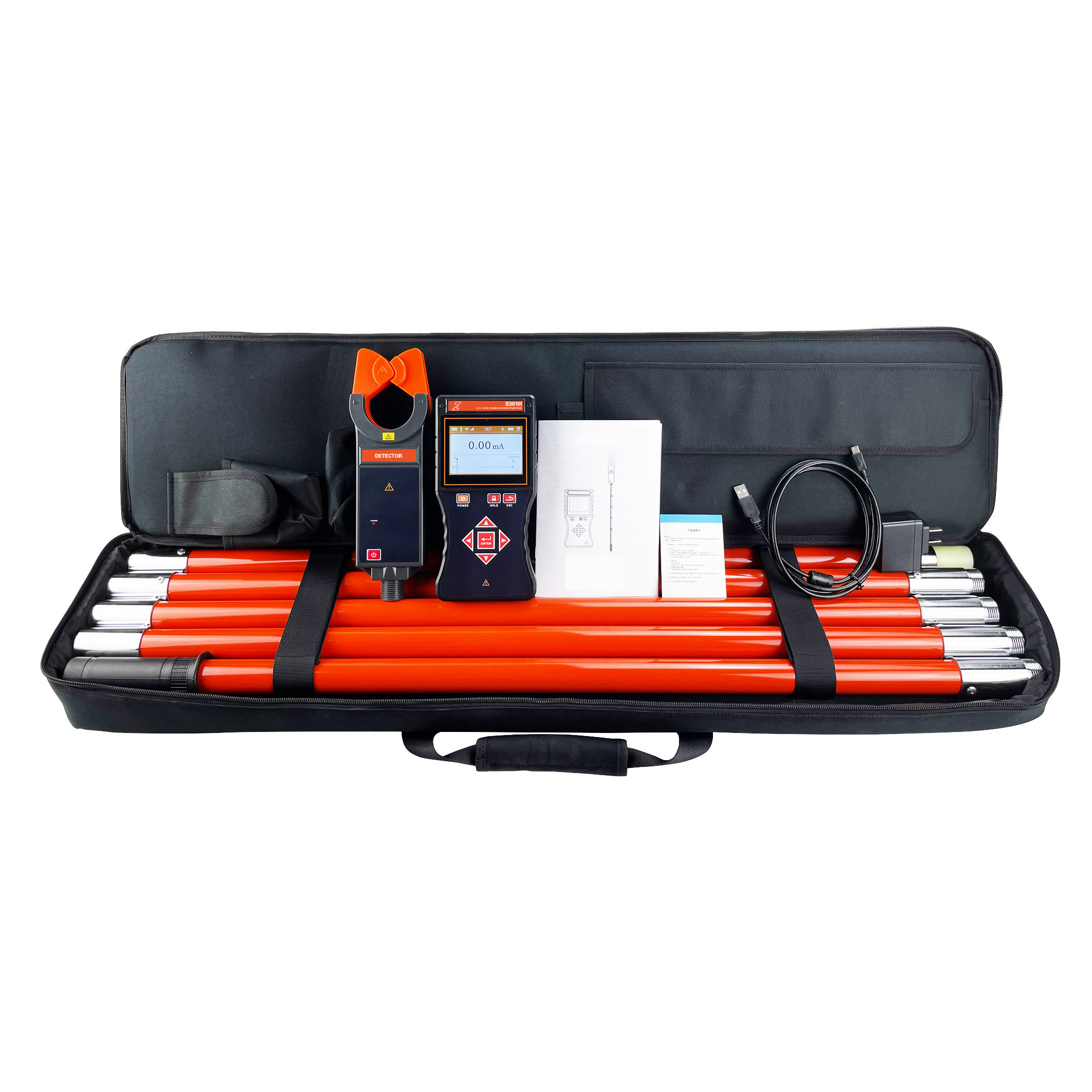

Yes. The standard package includes the detector, wireless receiver, insulating rod and bag.
How does the detector send readings to the receiver?
The specified detector-to-receiver link uses 433 MHz wireless transmission.
How are the detector and receiver powered?
The receiver is listed with a 7.4 V, 3000 mAh rechargeable lithium battery. The detector uses four 1.5 V LR03 alkaline batteries.
Can measurements be saved?
Yes. Data hold freezes the reading, and the specified memory stores up to 99 sets.
