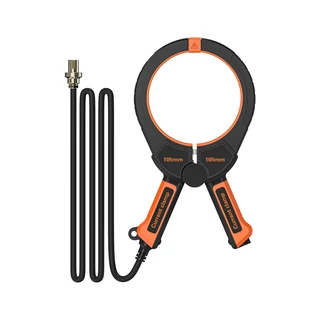

S-0105 – AC Clamp (Current Transformer)
AC clamp current-transformer probe for compatible host instruments.
105 mm jaw opening.
AC current range up to 300 A.
Nominal 1000:1 ratio with 1 mA output per 1 A primary current.
Proportional current output with connector options.
Optional insulating-rod attachment.
Product Description
The S-0105 is an AC current clamp probe with a large aperture for compatible electrical measuring and cable-identification instruments. Its 105 mm jaw surrounds the conductor without requiring the conductor to be disconnected.
It supports AC current up to 300 A and a nominal 1000:1 current ratio, with connector and output options. An optional insulating rod is available; the selected output and host instrument must suit the intended measurement.
Technical FAQ
What is the jaw opening?
The listed jaw opening is 105 mm.
Does the clamp display a current reading by itself?
The clamp provides a current-proportional output to a compatible host instrument, which displays or analyses the measurement.
What current ratio is listed?
The nominal current ratio is 1000:1, with 1 mA output per 1 A primary current. Custom ratio/output options are listed, so the ordered configuration must match the host.
Is the insulating rod a standard accessory?
The datasheet lists a 3 m insulating rod as optional.
