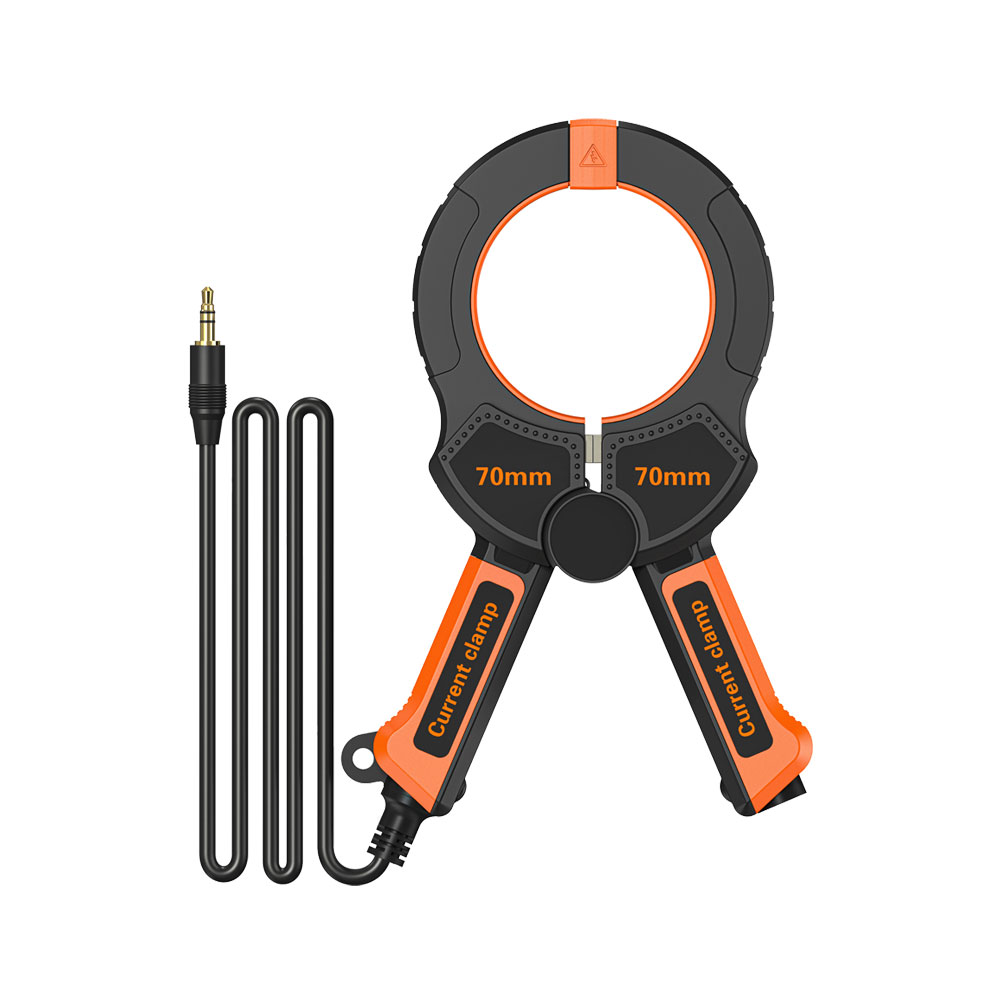

S-070 – AC Clamp (Current Transformer)

Clamp-type AC current transformer for use with compatible instruments.
AC current range up to 300 A.
Nominal 1000:1 ratio with 1 mA output per 1 A primary current.

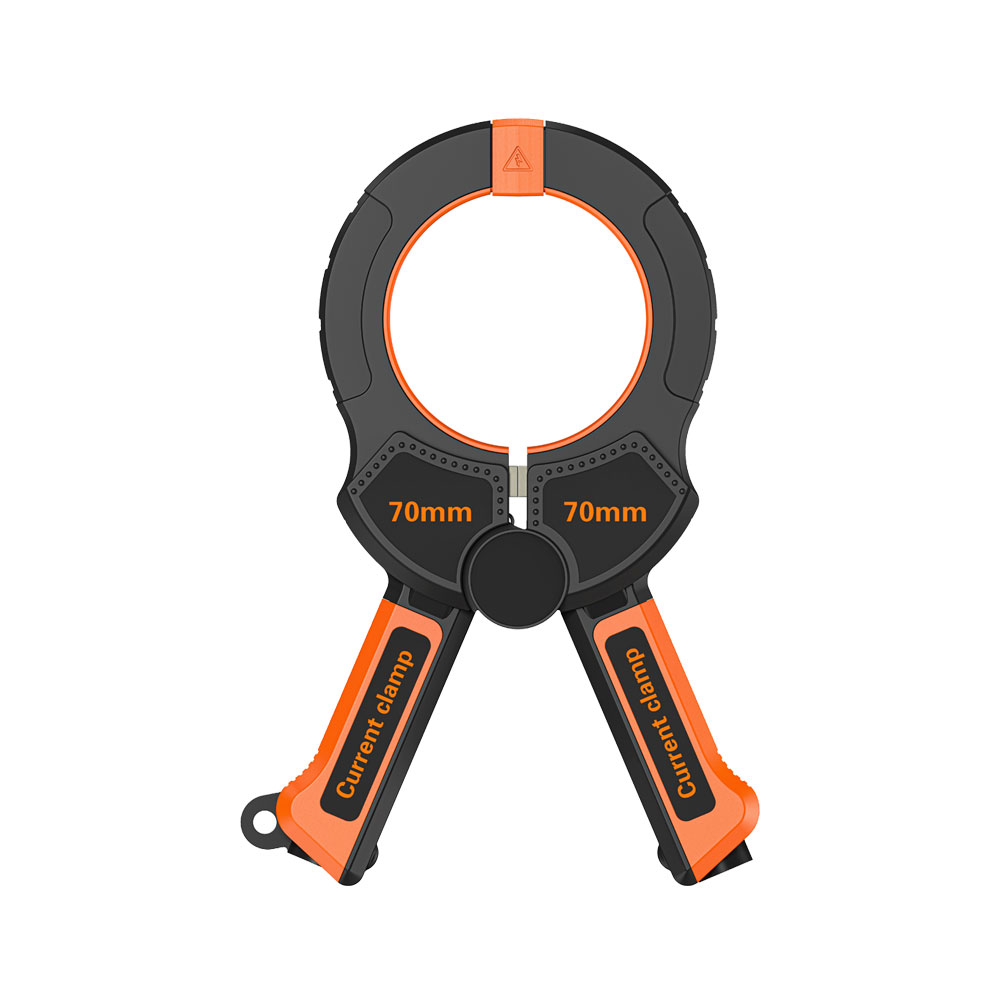

70 mm jaw shown on the standard product image.

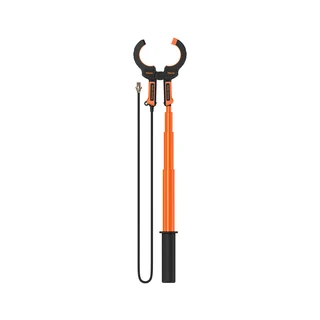

Can be attached to an optional insulating rod.
Directional arrows identify current or signal orientation.

Request a Quotation Download Datasheet

Product Description

The S-070 is an AC current clamp probe for compatible electrical measuring and cable-identification instruments. It senses AC current without disconnecting the conductor and provides an output proportional to the primary current.

The source lists an AC current range up to 300 A and a nominal 1000:1 ratio, with connector and ratio options. The clamp can also be attached to an optional insulating rod; the connected instrument, output configuration and approved operating setup determine its application.

Technical FAQ

Is the S-070 a standalone meter?

It is a clamp current-transformer probe that outputs a signal to a compatible host instrument. The source lists applications with measuring instruments and cable-identification systems.

What output ratio is listed?

The nominal ratio is 1000:1, equivalent to 1 mA secondary output per 1 A primary current. The datasheet lists customization, so the supplied ratio and host input must be matched.

Is the insulating rod included as standard?

The 3 m insulating rod is listed as optional. Select the required rod configuration when ordering.

How should the conductor be positioned?

The datasheet directs the measured conductor to the centre of the clamp. It also shows direction arrows for current or signal orientation.
