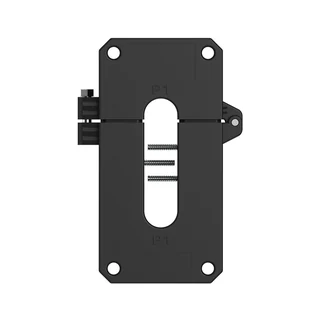

S-086KU – Current Transformer (Customizable) IP67CT

Split-core AC current transformer for monitoring with compatible instruments.
Rectangular 86 mm × 22 mm conductor opening.
Nominal AC current range up to 100 A.
Nominal 1000:1 current ratio and 1 mA per 1 A output.
Integrated nickel-alloy core and shielding construction.
S1/S2 output connections and a separate shield connection.
Four mounting holes for fixed installation.

Product Description

The S-086KU is a rectangular split-core current transformer for AC current monitoring with compatible instruments. Its 86 mm × 22 mm opening suits the grounding-conductor arrangements described in the source, and the split core installs without disconnecting the conductor.

The documented nominal version has a 100 A current range and a 1000:1 ratio, with current output through S1/S2 and a separate shield connection. Nickel-alloy shielding and four mounting holes support fixed monitoring installations.

Technical FAQ

Does the S-086KU read power and energy on its own?

It outputs a current signal to a compatible host. The host performs power, energy, phase and other calculations using that signal.

What opening and current ratio are specified?

The documented opening is 86 mm × 22 mm. The nominal current ratio is 1000:1, equivalent to 1 mA output per 1 A primary current, with a listed nominal range up to 100 A.

What are S1, S2 and GND used for?

The source identifies S1 and S2 as the coil/output connections and GND as the shield connection. Connection polarity, shield treatment and load must follow the approved same-model wiring instructions.

How can it be mounted?

The datasheet describes installation on flat steel grounding conductors or fixing through four 8 mm corner holes. The conductor is to be positioned in the middle of the opening.
